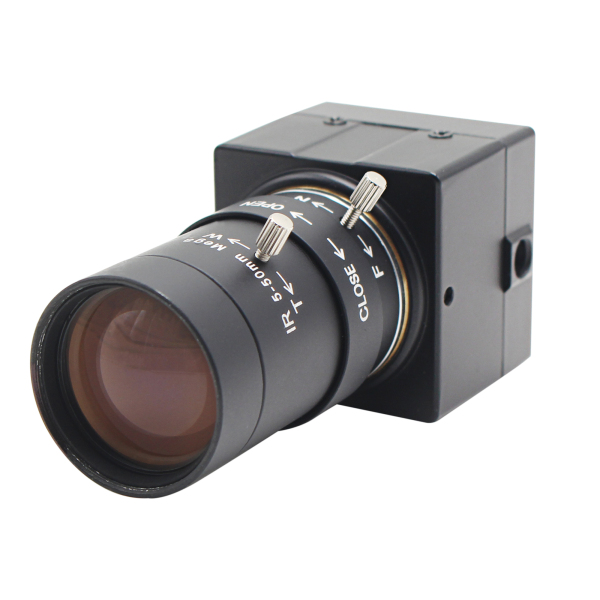

[ELP CAMERA] 8MP USB CAMERA / 8mp USB 카메라
의학기기, 산업장비, ATM기, KIOSK 등
다방면에서 사용가능한 카메라 제조업체 ELP의 8MP USB 카메라.
제품명 : 8MP USB CAMERA
모델명 : ELP-USB8MP02G-SFV
KC마크 인증 번호 : R-R-tr2-SFV
- Description -
Module Size : 38mm * 38mm 32mm * 32mm
Temperature (Operation) : -20degree to 70 degree
Temperature (Stable Image): 0 degree to 60°degree
Camera Board Assembly technique : SMT (ROSH)
Focus : Manual
Object distance: 5CM-100M
Resolution : 3264(H) X 2448(V) 8Megapixel
interface :USB 2.0 High Speed
protocol : USB Video Class(UVC)
Power : USB bus power
Operating system request: Win XPWin7Win8AndroidLinuxMac OS
Certifications : FCC and CE
Sensor Type: Sony (1/3.2'' )
Active Array Size : 3264X2448
Minimal illumination : 0.5Lux
Maximum Image Transfer Rate :
3264X2448 MJPG 15fps YUY2 2fps
< 촬영 모습 >
