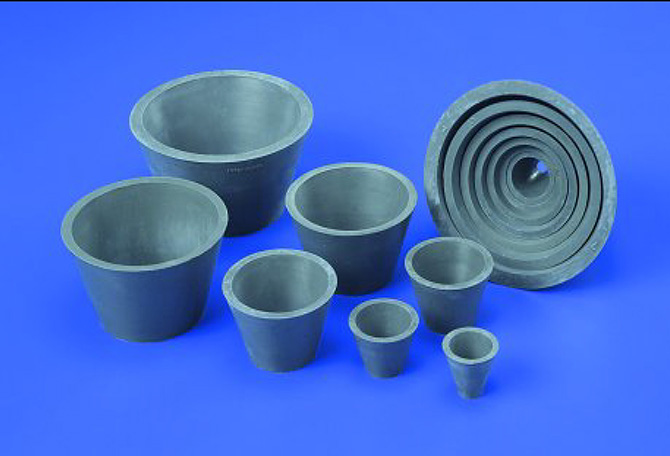

[Bal Supply] Filter Adapter / 필터 아답터
[Description]
Especially useful for supporting funnels, Gooch crucibles, filter tubes, etc. in
filtration assemblies. The adapter does not need to be fitted closely around the funnel stem
to be functional. Can be used singly or nested with adjacent sizes.
- 재질 : Neoprene Rubber
CAT.NO. Description O.D Top x Bottom I.D Top x Bottom Height Wall QTY
1010ASC Adapter, 25 sets of 7 25
1010A1 Adapter, Size 1 21 x 11 mm 17 x 7 mm 21 mm 2 mm 12
1010A2 Adapter, Size 2 27 x 16 mm 22 x 11 mm 21 mm 2.5 mm 12
1010A3 Adapter, Size 3 37 x 22 mm 31 x 16 mm 25 mm 3 mm 12
1010A4 Adapter, Size 4 46 x 29 mm 39 x 22 mm 29 mm 3.5 mm 12
1010A5 Adapter, Size 5 58 x 38 mm 50 x 30 mm 35 mm 4 mm 12
1010A6 Adapter, Size 6 69 x 45 mm 60 x 36 mm 40 mm 4.5 mm 12
1010A7 Adapter, Size 7 86 x 57 mm 75 x 46 mm 45 mm 5.5 mm 12
